This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.
In this range of Victron Multiplus inverter/chargers, the following models are available (Voltage -V / Volt-Ampere - VA / charge current in Amperes):
12/500/20 12/800/35 12/1200/50 12/1600/70 12/2000/80 |
24/500/10 24/800/16 24/1200/25 24/1600/40 24/2000/50 |
48/500/6 48/800/9 48/1200/13 48/1600/20 48/2000/25 |

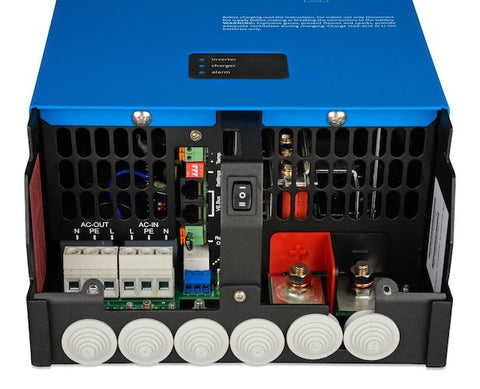

The MultiPlus is s a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Victron online training: MultiPlus Introduction (31 minutes)
Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
PowerControl - Dealing with limited generator, shore side or grid power: With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power: Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
High start-up power - Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode - When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay - By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Optional: Battery Temperature Sensor Victron Inverters & GX
View Data Sheet Multiplus 500-2000VA Inverter/Charger
View Manual Victron MultiPlus 500 - 1200 VA
View Manual Victron MultiPlus 1600 VA
View Manual Victron MultiPlus 2000 VA (Rev 07 '22)
