Deye 5 kW Hybrid Inverter Charger WiFi

  • Sale
  • Regular price R 23,290.00
Price includes VAT - Free Shipping over R1000

~ Lead time: 3 working days ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

This inverter is City of Cape Town CoCT NRS approved

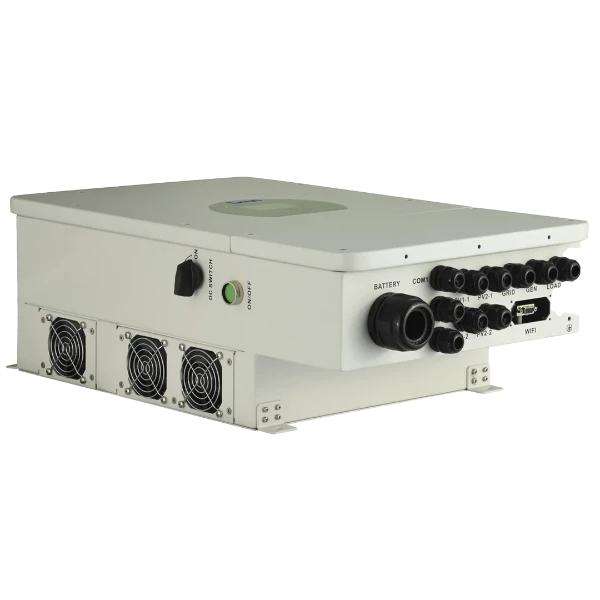

The Deye 5 kW (5SUN-5/6K-SG01LP1) is a single-phase 5kW low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.


      • Colorful touch LCD, IP65 protection degree
      • 6 time periods for battery charging/discharging
      • Max.16pcs parallel
      • DC couple and AC couple to retrofit existing solar system
      • Support storing energy from diesel generator
      • Max. battery charge efficiency of 95.4%
      • Unique Smart Load application and Grid peak shaving function
      • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
      • Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.

Technical Specifications:

      • Max. Charging Current (A): 120A
      • Max. Discharging Current (A): 120A
      • Max. DC Input Power (W): 6500W
      • MPPT Range (V):  150V-425V
      • Number of MPPT Trackers: 1
      • Number of Strings per MPPT Tracker: 1
      • Rated AC Output and UPS Power (W): 5000W
      • Max. AC Output Power (W): 5500W
      • Max. Continuous AC Passthrough (A): 50A
      • Max. Efficiency: 97.60%
      • Communication with BMS: RS485; CAN
      • Weight (kg): 32
      • Size: (mm) 420W×670H×233D
      • Warranty: 5 years

View Datasheet Deye 5kW Hybrid Inverter
View User Manual Deye 5kW Hybrid Inverter
