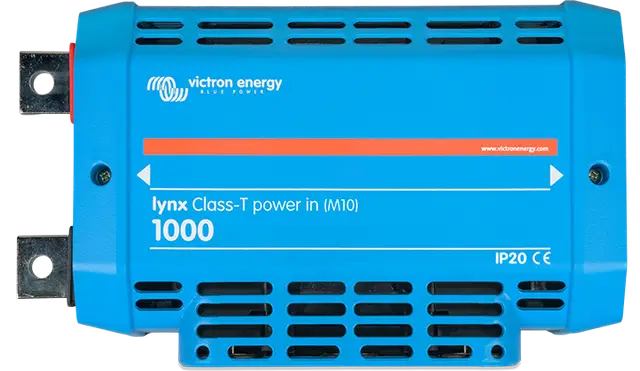

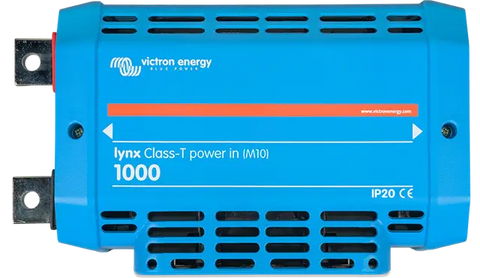

The Victron Lynx Power in - DC Bus Bar is a modular DC bus bar, to connect batteries to the Lynx DC distribution system.
The Lynx Power In is now available in two versions, with M8 or M10 busbar. Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.
The Lynx Power in-module connects batteries via an external fuse. It can be useful if you have multiple parallel strings. Due to the extremely high short circuit current potential of most battery banks, it is suggested to use an external fuse system with an appropriate fault current interruption rating (such as an NH HRC).
The Victron Lynx Power In contains a negative and positive DC bus bar with M8 or M10 bolts to connect battery cables. It can take cables up to 22 mm in diameter through the bottom entry guides, and there is no limit via the two-side connections.
The Lynx Power in does not contain fuses; fusing needs to be done externally.
