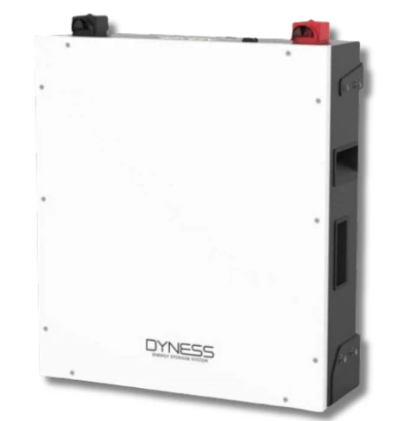

DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2

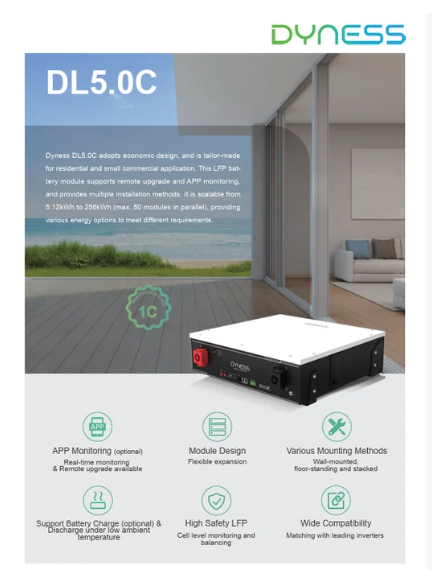

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

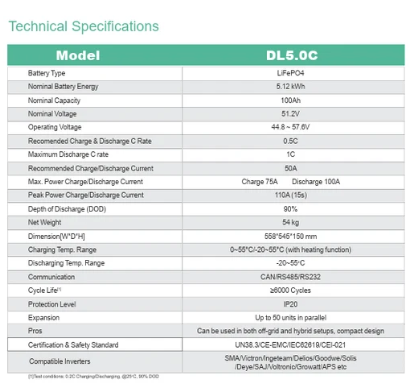

| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
7 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
