This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for product malfunctions due to incorrectly installed systems.
JA Solar is classified as a Tier-1 module manufacturer.

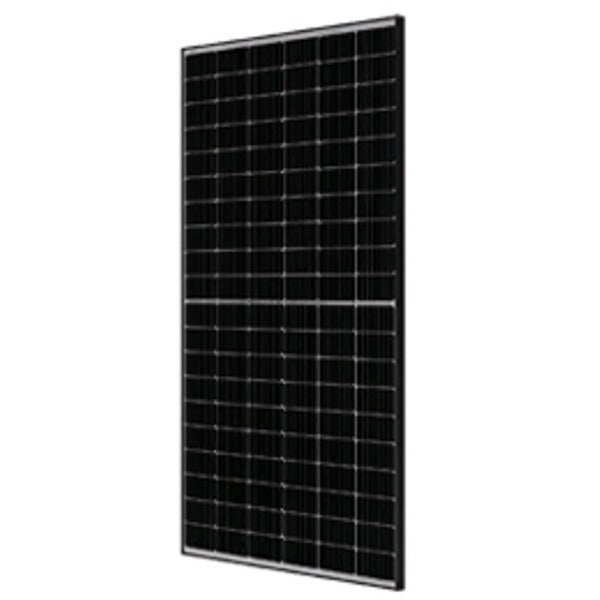

This is the JA Solar 415W Mono-crystalline PERC Half-Cell MBB Black Frame MC4 PV module. Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- Rating: 415 Wp
- Height x Width: 1,722mm x 1,134mm
- Efficiency: 21%
- Voc: 37.32 V
- Vmp: 31.45 V
- Imp: 13.04 A
- Isc: 13.95 A
- Weight: 21.5 kg
This is a mono-crystalline panel with higher efficiency (Click here for a Solar Tutorial on the comparison between poly-crystalline and mono-crystalline panels).
- High output power
- Lower temperature coefficient
- Less shading effect
- Better mechanical loading tolerance
- 12-year product warranty
- 25-year linear power output warranty.
JA Solar has been the world's leading cell producer since 2010 and has firmly established itself as a tier 1 module supplier since 2012.
Please note this module has a Black Frame. The panel comes supplied with MC4 connectors and 1200 mm long cables.
