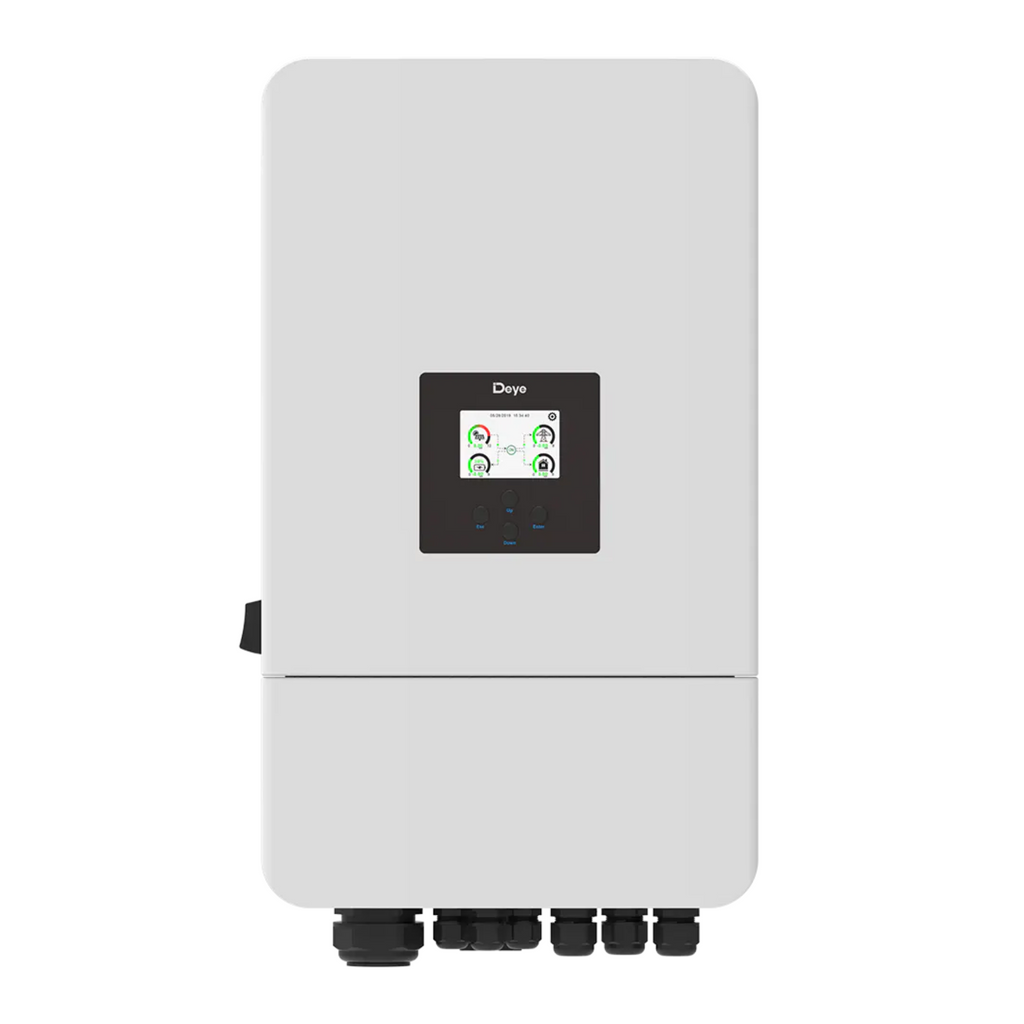

The Deye 10kW Single-Phase Hybrid Inverter is an advanced solar energy management solution designed to maximize energy efficiency and self-consumption. Ideal for residential and small commercial applications, this hybrid inverter seamlessly integrates solar panels, battery storage, and grid power, ensuring uninterrupted power supply and optimized energy use.
Detailed Features
-
Hybrid Functionality for Energy Independence
- Supports grid-tied, off-grid, and hybrid operation.
- Efficiently manages solar power, battery storage, and grid supply.
- Reduces dependency on the grid and lowers electricity bills.
-
High Power Output – 10kW Capacity
- Delivers a strong 10kW output, suitable for large households and small commercial setups.
- Can power multiple appliances simultaneously, including HVAC systems, refrigerators, and pumps.
-
Smart Battery Storage & Management
- Compatible with 48V lithium-ion and lead-acid battery banks.
- Intelligent battery charging and discharging strategy to maximize efficiency.
- Uninterrupted power supply (UPS) mode ensures backup power in case of blackouts.
-
High PV Input for Maximum Solar Utilization
- MPPT (Maximum Power Point Tracking) technology maximizes solar energy harvesting.
- Supports a wide PV input voltage range (150V – 500V) for flexible solar panel configurations.
- Up to 13kW PV input capacity, allowing for higher solar power generation.
-
Intelligent Monitoring & Control
- WiFi & App connectivity for remote monitoring via Deye’s smart platform.
- Supports RS485, CAN, and USB communication for integration with battery systems and smart grids.
- LCD touchscreen display for real-time system status and easy configuration.
-
Seamless Grid Integration & Backup Power
- Automatic switching to battery power during grid failures, ensuring an uninterrupted power supply.
- Peak shaving function allows users to limit grid power consumption and maximize solar self-use.
- Supports net metering to feed excess solar power back to the grid.
-
Safety & Protection Features
- Built-in surge protection, overvoltage, short-circuit, and overload protection.
- High-efficiency cooling system with intelligent fan speed control.
- Compliant with international safety standards, ensuring reliability and longevity.
Technical Specifications
- Model Number: (SUN-10K-SG02 LP1-EU-AM3)
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 250V
- Max. Discharging Current (A): 250
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Max PV Access Power (W): 2400
- Max PV Input Power (W): 19200
- Max Input Voltage (V): 500V
- Start-up voltage (V): 125V
- MPTT: Voltage Range (V): 150-425V
- Rated PV Input Voltage: 370V
- Peak Power (Off-grid) (W): 2 times of rated power
- Max Efficiency: 97.6%
- MPTT Efficiency: > 99%
- Communication Interface: RS485/RS232/CAN
- Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
- Operating Temperature Range (°C): -40 to +60°C, >45°C Derating
- Ingress Protection(IP) Rating: IP 65
- Type of Cooling: Intelligent Air Cooling
- Warranty: 5 Years/10 Years
- Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
