~ Lead time: 3 working days ~
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

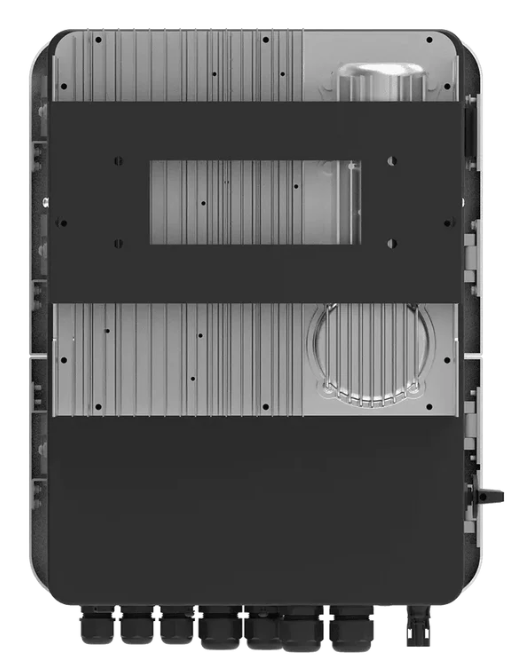

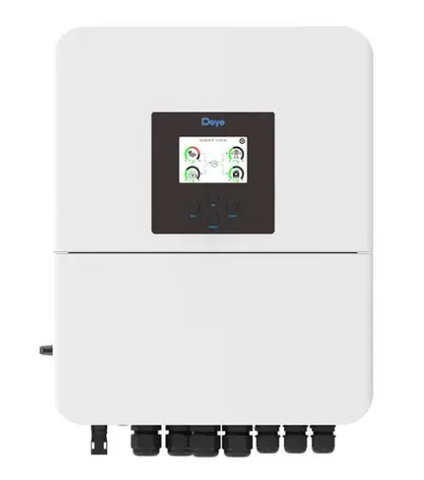

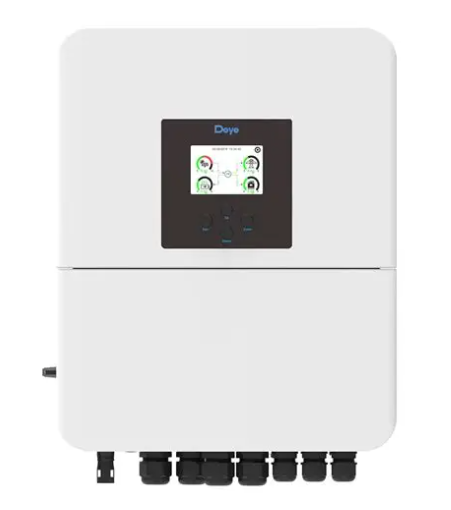

Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
Height (mm) 470
Width (mm) 376
Depth (mm) 241.5
Weight (kg) 19
5 Years Warranty
Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
View Datasheet Deye 5kW Hybrid Inverter
View User Manual Deye 5kW Hybrid Inverter
