~ Lead time: 3 working days ~
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

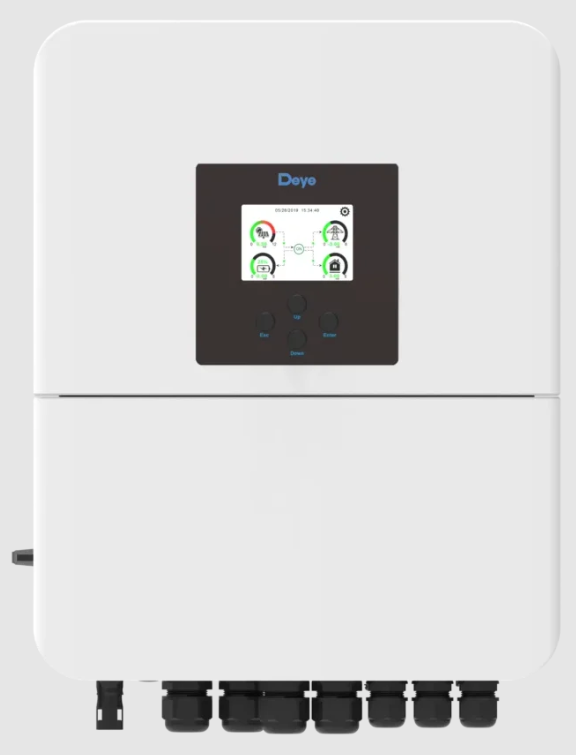

Deye 6KW Hybrid Inverter Including Wifi Dongle (SUN-6K-SG04LP1-EU-SM2)
-Colorful touch LCD, IP65 protection degree
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 140A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator
AC Input/Output Data:
Rated AC Input/Output Active Power (W) 6000
Max. AC Input/Output Apparent Power (VA) 6600
Rated AC Input/Output Current (A) 27.3/26.1
Max. AC Input/Output Current (A) 30/28.7
Max. Continuous AC Passthrough (grid to load) (A) 40
Peak Power (off-grid) (W) 2 times of rated power, 10s
PV String Input Data:
Max. PV Access Power (W) 12000
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
SIZE:
376×470×241.5 (Excluding Connectors and Brackets)
19 Kg
5 Years Warranty
View Datasheet Deye 6kW Hybrid Inverter
View User Manual Deye 6kW Hybrid Inverter
