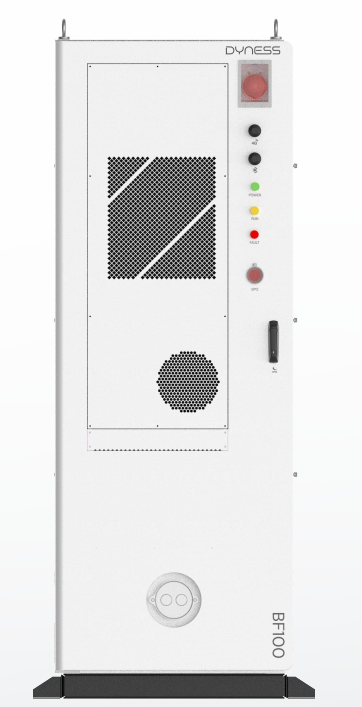

Dyness Enercore BF100-C100/358.4V 280Ah/100KWh
BF100-C140 is an outdoor air-cooled battery energy storage system designed for commercial and industrial applications. With flexible 100kWh and 140kWh configurations, it supports 2–12 hours of energy storage, improves energy efficiency, reduces peak demand charges, and enhances overall system reliability.
PRODUCT FEATURES:
-High Safety Architecture
Multi-sensor detection, aerosol fire suppression, water fire system.
-Industrial-Grade Protection
IP55 rating for outdoor environments.
-Low Noise Operation
Optional ≤65dB noise reduction design.
-Smart Monitoring System
Real-time monitoring via App and cloud platform.
-Long-Duration Energy Storage
Supports 2–12 hours energy storage applications.
-Flexible Capacity Design
Available in 100kWh and 140kWh configurations.
Specifications and Features
-Model :BF100-C100E BF100-C140Battery
Battery Type : LFP (LiFePO4)
Battery Capacity : 314Ah
Rated Current :157A
Max. Current :180A
PACK Configuration :1P20S*5 1P20S*7
Rated Voltage : 320V 448V
Voltage Range : 290~360Vdc 406~504Vdc
Nominal Capacity :100.4kWh 140.6kWh
System
Weight : 1360 kg (TBD) 1650 kg (TBD)
Dimension : (W * D * H) 850*1320*2425mm
BF100-C140 User Manual
Max. Efficiency : 94%
Air Conditioner Power : 3.2 kW (Cooling), 1 kW (Heating)
OperatingTemperature : -20~50℃ (Derating above 45℃)
Operating Humidity : 0~95% RH (Non-condensing)
Ingress Protection :IP55
Anti-corrosion Grade : C3 (Optional C5)
Cooling Method :Air-cooling
Noise :≤75dB (Add optional accessories≤65dB)
Elevation : 4,000m (Derating above 2000m)
Display :APP
Fire Protection : Aerosol, Multi-sensor/Water ingress, Explosion-proof ventilation
Communication :Ethernet/4G/RS485
|
|
|
Warranty : 5 Years
