This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

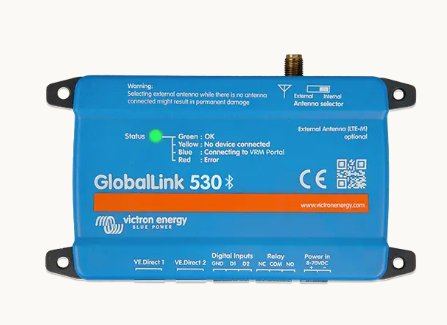

The GlobalLink 530 and GlobalLink 520 connect remote Victron systems or individual Victron products to VRM, the
Victron Remote Management portal. VRM provides access to both real-time and historical data from the
connected system, including battery voltage, state of charge, and PV yield. Use of the VRM portal is free of charge.
A key feature of the GlobalLink is the included pre-installed and pre-paid SIM card. It comes with 5 years of cellular
connectivity, eliminating the need to purchase, install, or manage a separate SIM card.
GlobalLink 520 vs GlobalLink 530
The difference between the GlobalLink 520 and GlobalLink 530 is the cellular connectivity.
The GlobalLink 520 uses LTE-M, a low-power cellular technology designed specifically for IoT applications. While
LTE-M is an excellent fit in supported regions, its availability is limited in many parts of the world.
The GlobalLink 530 uses standard 4G LTE connectivity—the same network technology used by smartphones—and
also supports 2G as a fallback where available. This provides broader global coverage and greater deployment
flexibility.
For most countries, including Canada, the GlobalLink 530 is the recommended choice due to its wider network
compatibility. The exception is the United States, where the GlobalLink 520 remains the recommended model, as
the GlobalLink 530 is not certified for use on US cellular networks.
Features
• Wired connectivity: Connect up to two products using a VE.Direct cable
• Wireless connectivity: Connect up to ten products wirelessly using Bluetooth Low Energy.
• VRM monitoring: Monitor battery state of charge, power consumption, power harvest from PV
• RuuviTag support: Compatible with Ruuvi wireless temperature and humidity sensors.
Custom SIM card: Supports the use of customer-supplied SIM cards.
GlobalLink 520 530
Supply voltage 8 – 70 VDC
Power draw with Bluetooth enabled
(disabled)
Average with relay open
12 V: 50 mA (20 mA) / 24 V: 26 mA (10 mA) / 48 V: 14 mA (5 mA)
Average with relay closed
12 V: 64 mA (40 mA) / 24 V: 34 mA (20 mA) / 48 V: 19 mA (10 mA)
Mounting Wall
Input connectivity
VE.Direct ports (always isolated) 2
RuuviTag support Yes
Instant Readout via Bluetooth Yes, (connect up to 10 additional Smart devices via BLE)
Digital Inputs 2
Relay
1 x NO/NC
DC up to 30 VDC: 2 A
AC: 0.5 A, 125 VAC
Output connectivity
Bluetooth Yes
Modem SIMCom SIM7070G SIMCom A7672G
Cellular
CAT M1 (LTE-M)
17 bands supported from
699Mhz to 2690Mhz (Total worldwide support)
Bands supported are currently: 1,
2, 3, 4, 5, 8, 12, 13, 14, 17, 18, 19,
20, 25, 26, 28, 66
Not authorised for use in the US.
LTE Cat 1 connectivity with up to 10
Mbps (DL) and 5 Mbps (UL)
Supported communications: LTE-TDD,
LTE-FDD, GSM, GPRS, EDGE
Frequency bands: GSM 900/1800 MHz,
LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17
B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B38/B39/B40/B41
Dimensions
Outer dimensions (h x w x d) 123 x 67 x 23 mm
Operating temperature range -20 to +50 °C
Other
Antenna Internal and SMA connector for optional external antenna
Factory included SIM Prepaid 1nce data SIM with 5 years of connectivity.
Extendable after expiry
Support for custom SIM Yes
Location Approximate location based on the currently connected mobile
network cell tower
Optional external LTE-M SMA-M
antenna
Outdoor wall mount antenna: 3 meter
