This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

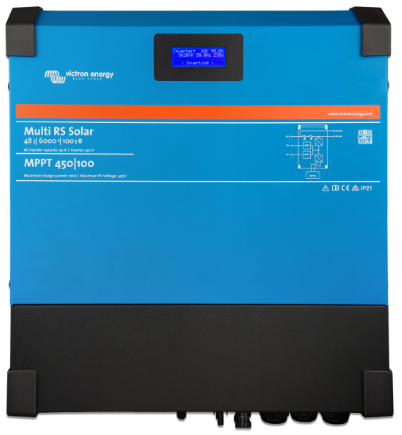

Victron Multi RS Solar 48/6000/100-450/100
The Multi RS Solar 48/6000/100-450/100 is a 48V, 6kVA hybrid inverter/charger with a 450V dual-tracker MPPT solar input, built for home and business battery systems needing combined inverter, charger and solar charging in one unit.
Core Capabilities & Features
1. Hybrid, Backup and Off-Grid Operation
The Multi RS Solar stores excess solar energy for later use, switches to backup power during grid outages, and operates independently off-grid. In generator mode it controls run-hours and supplements generator output from the battery when demand peaks.
2. PowerControl and PowerAssist
Set a maximum grid or generator current and the unit manages other AC loads, using spare capacity for battery charging. PowerAssist adds battery power to cover short peak demands beyond generator or grid capacity.
3. Expandable Solar Capacity
The integrated 6kW PV capacity can be extended with additional solar chargers (DC-coupled) or PV inverters (AC-coupled), with output automatically controlled by frequency shift power control.
4. Monitoring and Communication
Check battery, inverter and solar parameters on the built-in display or via Bluetooth and the VictronConnect app. VE.Can connects to a GX device for system monitoring and firmware updates, while VE.Direct links to a GlobalLink 520 for remote data.
Technical Specifications
| Parameter | Specification |
|---|---|
| DC Input Voltage Range | 38 – 62 V |
| Continuous Output Power at 25°C | 4600 W at 46 VDC increasing to 5200 W at 52 VDC |
| Continuous Output Power at 40°C | 4500 W |
| Peak Power | 9 kW for 3 seconds, 7 kW for 4 minutes |
| Efficiency | 96.5% at 1 kW load, 94% at 5 kW load |
| Zero Load Power Consumption | 20 W |
| Maximum Open Circuit PV Array Voltage | 450 V |
| MPPT Operating Voltage Range | 65 – 450 V |
| Maximum PV Conversion Power | 6 kW total, 3 kW per tracker |
| Maximum Charge Current from AC | 88 A @ 57.6 VDC |
| Total Maximum Charge Current (AC + PV) | 100 A DC |
| Transfer Switch | 50 A |
| Operating Temperature Range | -40 to +65 °C |
| Protection Category | IP21 |
| Weight | 12.3 kg |
| Dimensions (hxwxd) | 462 x 425 x 127 mm |
Recommended System Accessories
- GlobalLink 520: Connects via VE.Direct for remote data monitoring of the system.
- Cerbo GX: Links via VE.Can for system monitoring, data logging and advanced ESS functions like zero-export and backup mode.
- VM-3P75CT Energy Meter: Adds grid consumption data to the system via a VE.Can or Ethernet connection to the GX device.
5-Year Limited Warranty.
